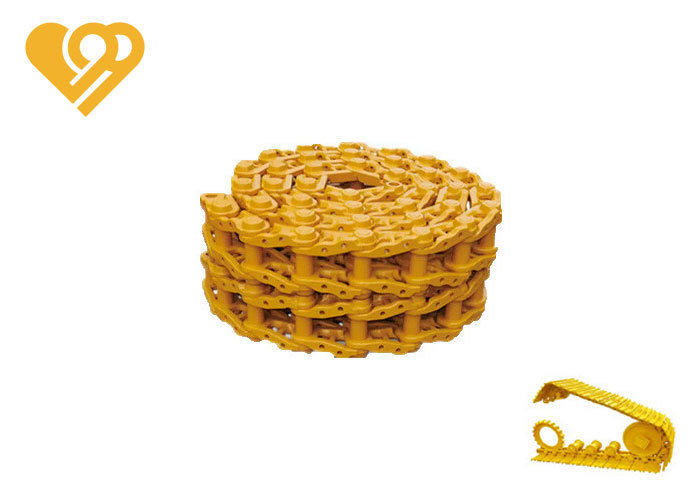

KOMATSU PC20 Track Chain Assembly with Mid-Frequency Heat-Treatment Technology Self-Lubricated System and Precision Assembly Dimensions

KOMATSU PC20 Track Chain Assembly with Mid-Frequency Heat-Treatment Technology Self-Lubricated System and Precision Assembly Dimensions

Подробная информация о продукте:
Место происхождения:	Китай (материка)
Фирменное наименование:	YT
Номер модели:	ПК20
Оплата и доставка Условия:
Количество мин заказа:	1 шт
Цена:	negotiable
Упаковывая детали:	Экспортная упаковка
Время доставки:	7-30 дней
Условия оплаты:	L/C, T/T.
Поставка способности:	10000 ПК/месяц

Контакт

Подробная информация
Материал:	сталь 40Mn2 или 35MnBH	Техника:	Вковка и термическая обработка
Качество:	Тепловая обработка HRC 40-55	Ценовой термин:	ФОБ/CFR/CIF/EXW
Цвет:	желтый или черный	Гарантийное время:	12-18 месяцев
Состояние:	Новый	Масса:	Необязательный
Выделить:	Mid-Frequency Heat-Treatment Technology Track Chain Assembly , Self-Lubricated System Track Link Group , Precision Assembly Dimensions Excavator Undercarriage Spare Parts

Характер продукции

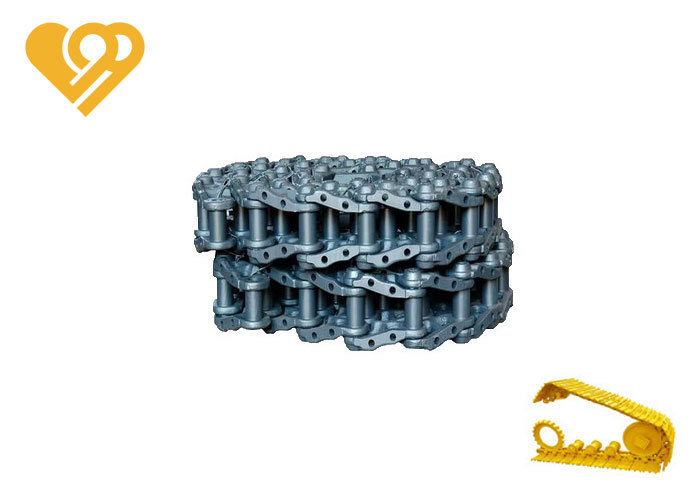

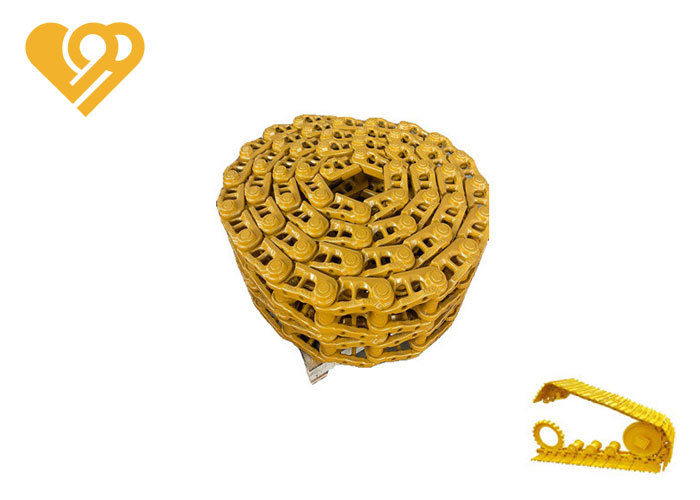

KOMATSU Excavator Undercarriage Spare Parts PC20 Track Chain Assembly

OEM Track Link Group With Mid-Frequency Heat-Treatment Technology

Track Link Features

Utilizing sophisticated machining centers, including horizontal and vertical CNC technology, we perform precision operations like cutting, boring, tapping, and grinding to guarantee component quality and accuracy. This ensures precise assembly dimensions while extending component lifespan and minimizing hourly production expenses.

Track links are manufactured from 35 MNB forged special steel, reinforced with advanced structure technology and heat treatment processes. This combination delivers maximum strength and abrasion resistance. The integrated self-lubricated system significantly enhances track chain bearing service life.

Main Dimensions of Installation

Suitable Model	P	A	B	C	E	F	H	K	L
EX30/EX35/PC20/PC30/PC35R	101.6	55	55	22	10.5	35	76	63	26
IHI30J	101.6	64	64	22	10.5	44	85	63	26
PC20	101.6	52	52	22	10.5	32	73	65	28
YC35	101.6	55	55	22	12.5	35	77	70	30
TM20	101.6	55	55	22	10.5	34	72	61	29.5
PC40-7/SK45	135	93.8	63.8	46	12.5	40.4	87.4	65	30
EX40/EX45	135	104	80	46	12.5	52	105	65	30
PC60-6/PC75/SK60	154	89	73	57	14.5	45	104	74	33.5
PC100-1/2/PC100-3/HD350	154	112.4	82.4	57	14.5	49.4	124.4	87	40
EX60-1/2/3/5	154	90	90	55	14.5	56	127	80	38

The models above are for reference only. We can supply additional products to meet your requirements. Please contact us with your specific needs.

Manufacturing Processes

Our Advantages

World-class quality components
Factory-direct pricing for cost efficiency
Flexible payment terms including T/T and L/C
Fast delivery within 30 days after contract confirmation
Comprehensive after-sale services including video technical support and 24/7 online assistance
